Features of Plug-in Type Cable Connectors

• Safety: Plug-in type cable connectors are typically fully insulated and fully sealed, allowing operation under live conditions, thereby enhancing operational safety.

• Waterproof Performance: To extend the service life of plug-in cable connectors, rainproof devices are usually installed at both ends to prevent rainwater ingress and ensure optimal performance.

• Protection Measures: In the event of a transformer short circuit, fuses are often installed within the plug-in cable connectors. When a short circuit occurs, the fuse blows to cut off the current, ensuring circuit safety.

• Flexibility: Plug-in cable connectors offer expandability and easy assembly/disassembly, enabling “T”-type cable connections.

The outer layer includes a semi-conductive shielding layer, making it touch-safe and preventing accidents. The unique stress cone structure effectively disperses electric field stress, addressing issues at the cable shielding layer cut. Fully sealed, fully insulated, maintenance-free, submersible, and resistant to contamination. It can also be equipped with live indicators or fault indicators.

These products are widely used in 8.7-15kV voltage-level branch boxes, ring main units, and distribution cabinets for separable connections between cables and electrical equipment.

Manufactured using advanced post-injection molding processes and imported raw materials, they feature an optimized internal structure, excellent sealing, reliable operation, and flexible installation.

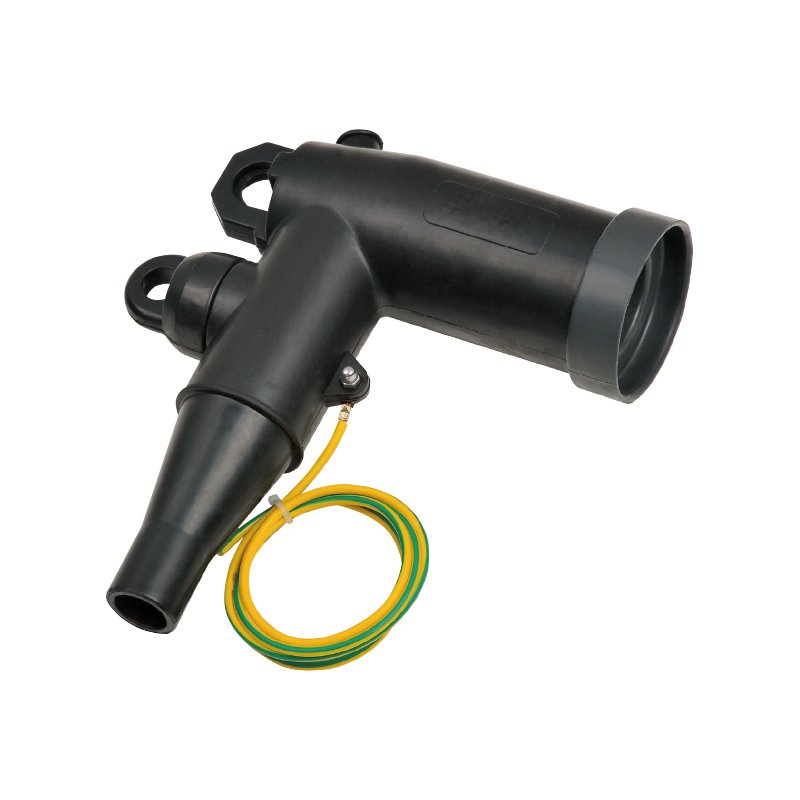

10kV European-Style Cable Branch Box Front Connector | European T-Type Connector | Touchable Plug Overview
Application: Enables single-phase or three-phase insulated cable connections to transformers, switchgear, branch boxes, and other equipment via 630A prefabricated connectors. Suitable for indoor and outdoor installation.

• System Voltage: 24kV

• Continuous Rated Current: 630A (900A overload sustainable for 8 hours)

Cable Characteristics:

• Polymer insulation (XLPE, ERP, etc.)

• Copper or aluminum conductor

• Semi-conductive or metal shielding

• Conductor Size: 12kV – 25-400mm² | 24kV – 25-400mm²

Performance:

• Provides fully shielded and fully sealed separable connections when paired with suitable bushings or plugs.

• Capable of long-term operation underwater and in other harsh conditions.

• Built-in capacitive test point for determining line live status, must be used with a voltage indicator.

• No minimum phase-to-phase safety distance requirements.

• Can be installed vertically, horizontally, or at any angle.

Installation:

• No special tools, tapes, or fillers required.

• Immediate operation after installation onto relevant components.

• Standard accessories and installation instructions provided. (Contact us for special requirements.)
