Scope of Application

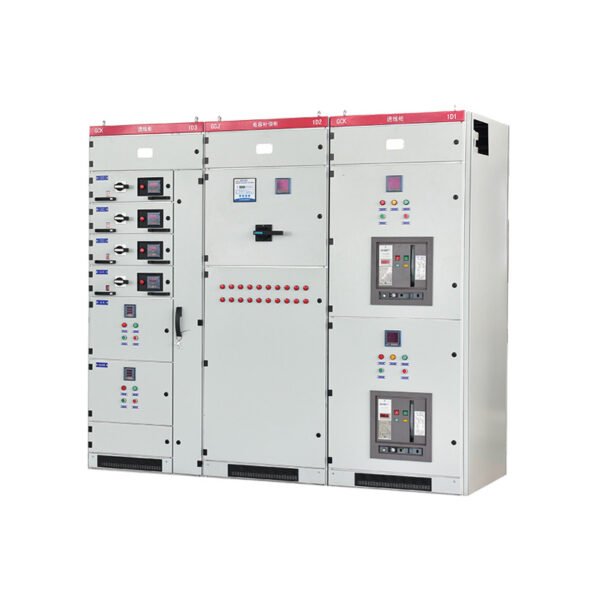

This product is suitable for use in stations, ports, public buildings, and especially in motor group control systems and local control equipment for metallurgical and light industrial production lines. When equipped with appropriate interfaces, it can be integrated with PLCs (Programmable Logic Controllers) or microprocessors to form automated power distribution control systems. It is fully capable of meeting the requirements of centralized control systems in chemical industries.

Ambient Conditions:
■ Altitude not exceeding 2000m.
■ Operating ambient temperature: -15 °C to +40 °C.
■ Atmospheric conditions: Clean air; relative humidity not exceeding 50% at +40 °C, with higher humidity permitted at lower temperatures (e.g., 90% at +20 °C), but considering possible occasional condensation due to temperature changes.
■ Locations free from fire, explosion hazards, severe pollution, chemical corrosion, and severe vibration.
■ Installation tilt relative to vertical not exceeding 5°.
■ The control center can withstand transportation and storage temperatures from -25 °C to +55 °C, and up to +70 °C for short periods (not exceeding 24 hours).

Main Technical Data
■ Rated insulation voltage: 660V.
■ Rated operational voltage:
– Main circuit: AC 380V (660V)
– Auxiliary circuit: 380V, 220V
– DC control circuit: 220V, 110V
■ Rated frequency: 50–60Hz.
■ Rated current:
– Horizontal busbar system: ≤5000A
– Vertical busbar system: 630A, 1250A, 1600A
■ Rated short-time withstand current:
– Horizontal busbar: 80kA
– Vertical busbar: 100kA
■ Rated peak withstand current:
– Horizontal busbar: 175kA
– Vertical busbar: 110kA
■ Breaking capacity of functional units (drawers): 50kA.
■ Enclosure protection rating: IP30, IP40.
