| Product Model |
|
ZGVA12011/21/42D |
| Product Specification |
|
11/21/42KW |
| Rated Input Voltage |
|
AC380V ±20% |
| Rated Output Voltage |
|
AC380V ±20% |
| Installation Method |
|

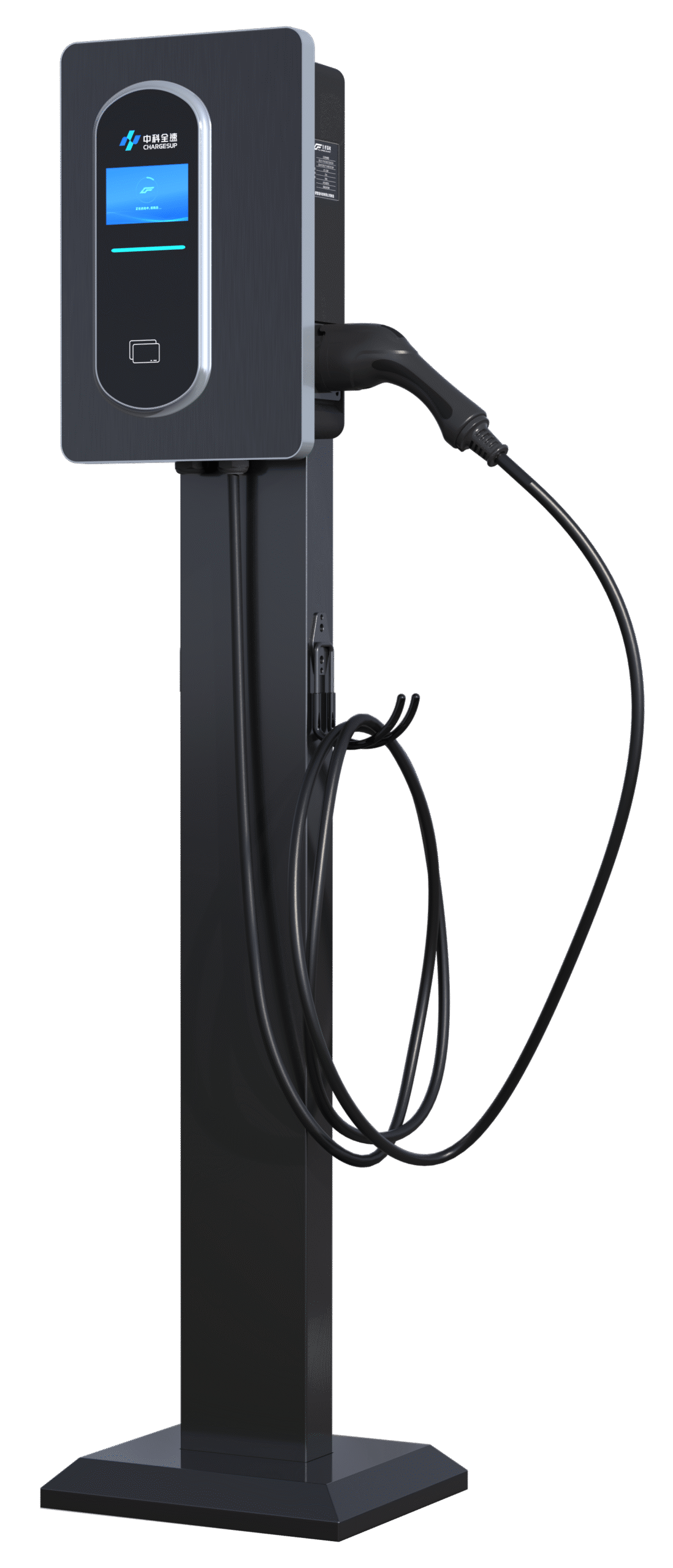

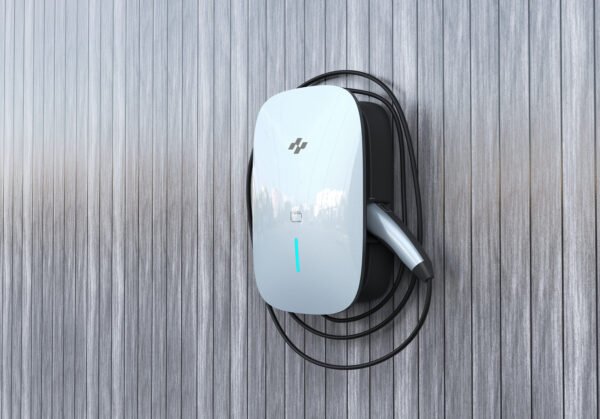

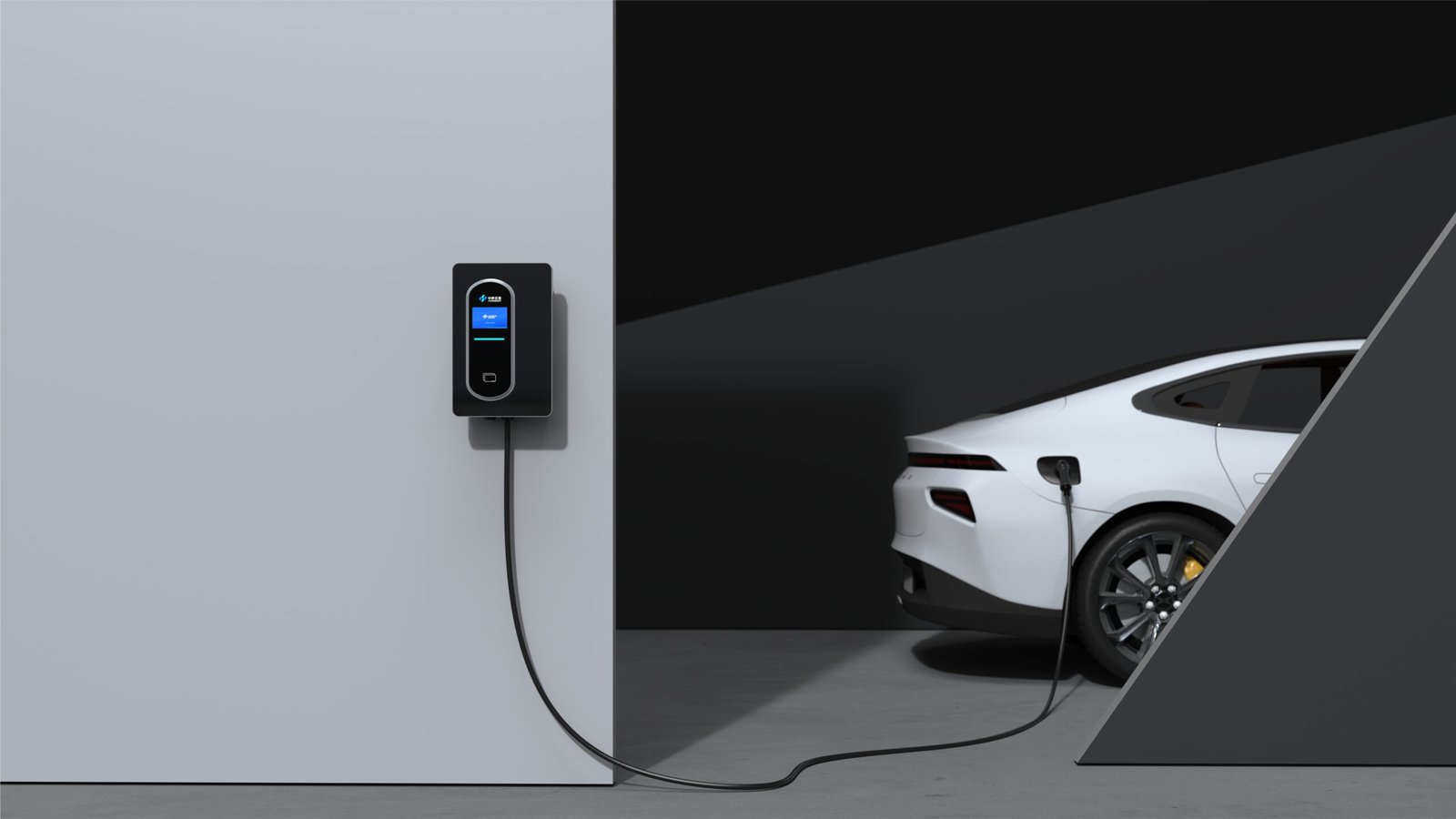

Wall-mounted / Pole-mounted |
| Maximum Output Current |
|
16/32/63A |
| Wiring Method |
|
Bottom entry, Bottom exit |
| Unit Dimensions |
|
300*110*220mm |
| Charging Equipment |
Input Frequency |
50Hz ±10% |
|
Cable Length |
3.5m / 5m / 7m / Other lengths (Customizable) |
|
Metering Accuracy |
Class 1 / Class 2 |
|
Enclosure Material |
Sheet Metal |
| Electrical Indicators |
Current Limit Protection Value |
≥110% |
| Function Design |
Human-Machine Interface (HMI) |
4.3-inch LCD Display (Optional), LED Indicators |
|
Communication Interface |
Ethernet / 4G |
|
Start Method |
Plug-and-Charge / RFID Card / Scan QR Code, Swipe Card |
|
Safety & Compliance Standards |
GB/T 19001-2016, GB/T 24001-2016, GB/T 18487.1-2015/2017, GB/T 27930-2015, GB/T 34657.1/34658-2017, NB/T 33008.1/33001-2018 |
| Safety Design |
Safety Functions |
Over-voltage Protection, Under-voltage Protection, Overload Protection, Short-circuit Protection, Grounding Protection, Over-temperature Protection, Low-temperature Protection, Lightning Protection |
|
Operating Temperature |
-20℃ ~ +50℃ |
|
Operating Humidity |
5% ~ 95% (Non-condensing) |
|
Operating Altitude |
< 2000m |
|
Ingress Protection (IP) Rating |
IP54 |
